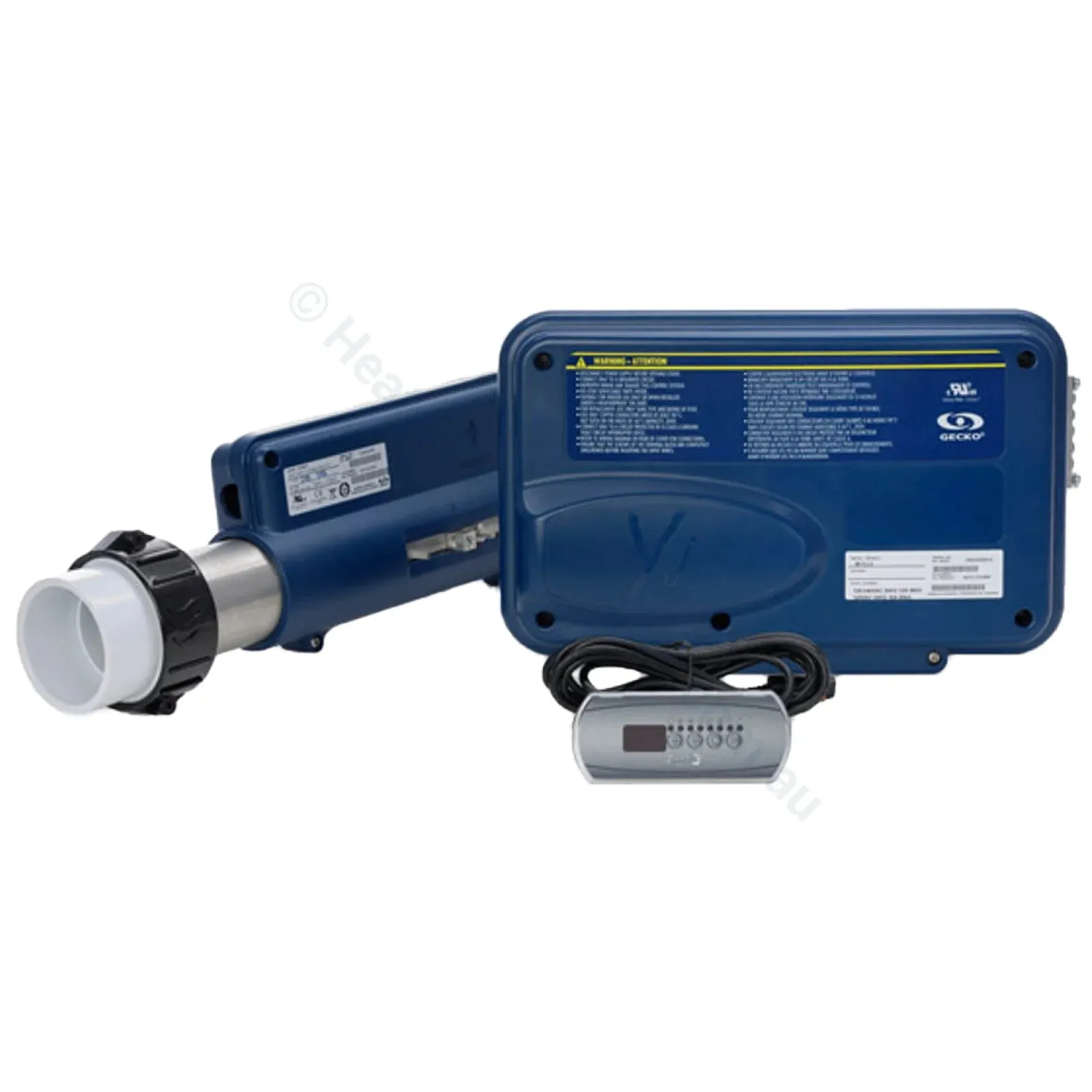

Aeware in.yj-2 Spa System

The Aeware in.yj-2 spa system is a versatile and compact controller, typically set up with a 10A circuit. It is built on the same platform as the in.ye series controllers, but this model features direct spade terminal connections, making it a highly universal spa pack.

Touchpad Compatibility

The in.k200 touchpad may require hole size modification and can replace:

• Gecko K-9
• Balboa VL200
• Spaquip / Davey SP601

For replacing Balboa VL401 and ML700 touchpads, see other available kit versions.

System Compatibility

The in.yj-2 is a universal spa control system suitable for:

• 1 x 2-speed pump
• 1 x 1-speed pump blower
• 1 x 1-speed pump, blower, and 24-hour circulation pump
• Ozone & LED light support

Heater Specifications

• 1.3kW heater
• In-line remote heater (15” long x 2” stainless steel tube, complete with unions)

Electrical & Connectivity

• 230-240V, 50Hz
• 10A – 32A max single-phase
• Utilizes 6.4mm spade terminals for direct connection to:
  • Pump 1
  • Blower
  • Ozone
  • Circulation Pump
• All inputs and outputs wired directly onto relay spade terminals on the circuit board
• Light Output: 12V AC, 0.5A / 6W max (cannot use a standard 12W incandescent lamp)
• Max Current Draw:
  • All outputs combined (including heater): 32A
  • Any individual pump: 10A

Ideal Replacement For:

The in.yj-2 is perfect for replacing spa controllers used with a separate pump, including:

• Older "all-in-one" hot pumps
• Spaquip Pulsar Series
• Spaquip 2095 Series (with 2 outputs light)

This unit offers a reliable, modern, and adaptable solution for spa system upgrades.
