SeaYa Umbilical Battery Pack 24.15Ah (battery only)
SeaYa 24.15 Ah Li-Ion battery pack canister available in backmount or sidemount configuration.
TECHNICAL DATA
| Capacity: | 24.15 Ah |
| Max. voltage: | 12.6 V |
| Max. current: | 20 A |
| Protections: | against overcharge, overdischarge, overdrain and short circuit |

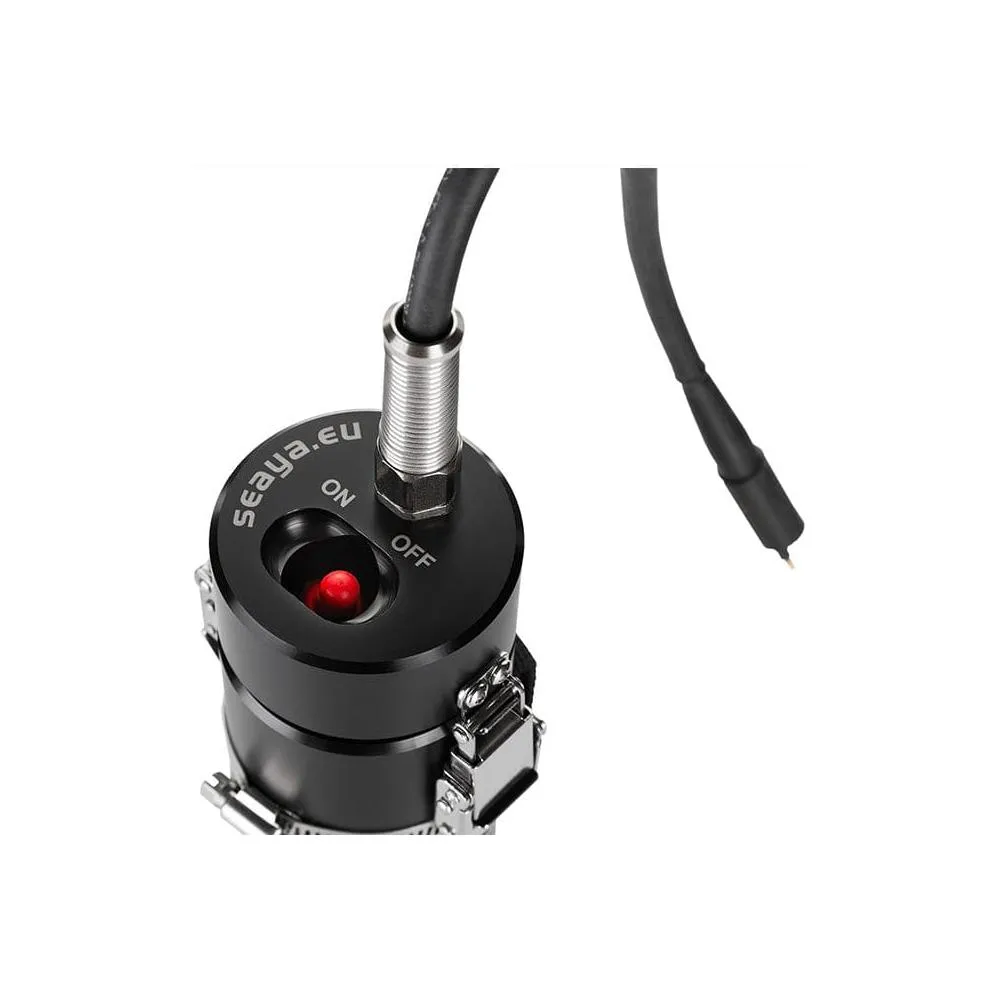

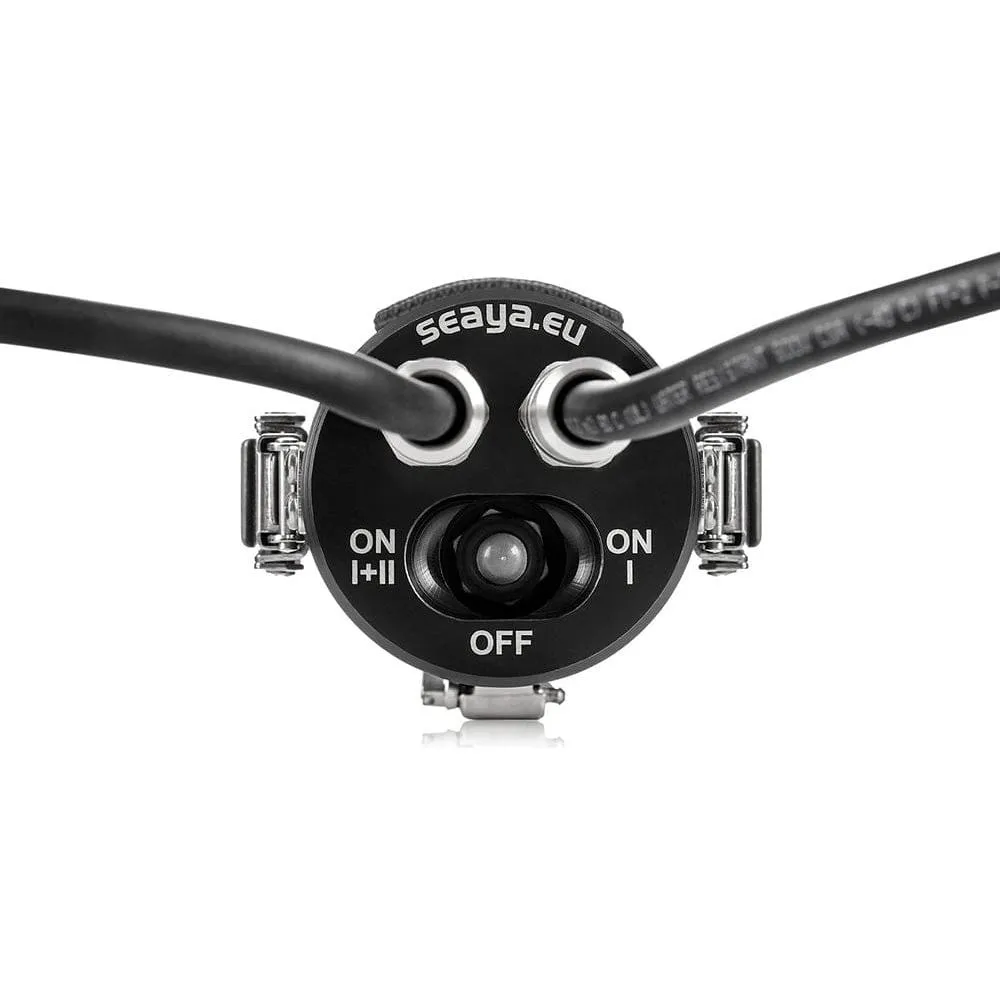

| Switch type: | CLASSIC toggle or PIEZO push-button |
| Configuration: | backmount or sidemount |
| Max. operating depth: | 150 m |
| E/O cord length: | 40 cm (BM), 65 cm (SM) or according to customer requirements |
| Weight on land/in water: | 2.2/0.9 kg |
| Colour: | black or blue |
| Made of: | Delrin® |
| Certyficate: | UN38.3 |
| Charging time: | 8 h* |
DIMENSIONS
| 24.15 Ah canister | backmount CLASSIC | backmount PIEZO | sidemount CLASSIC | sidemount PIEZO |
| Diameter/Height: | 70/306 mm | 70/287 mm | 70/306 mm | 70/299 mm |

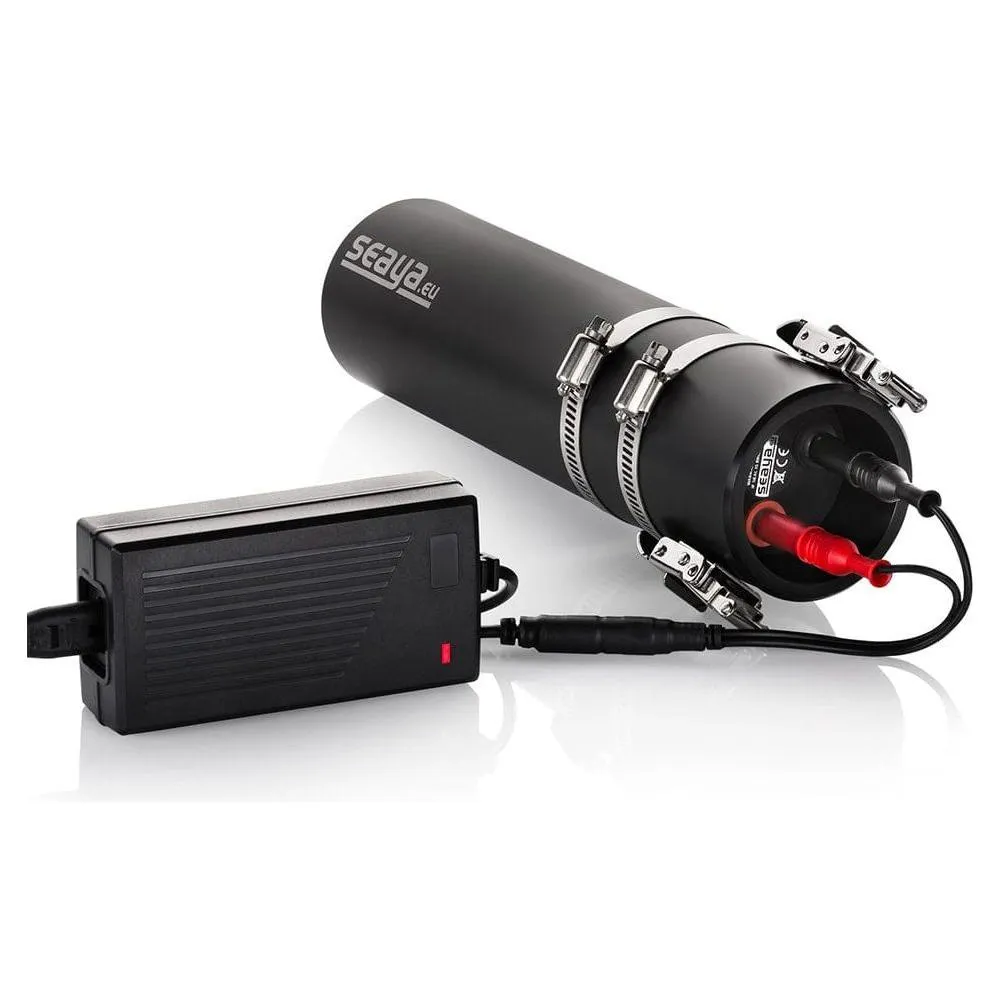

*Automatic SY-CHARGLI-4A charger for Li-Ion battery packs with
UPGRADE OPTIONS
- SM Configuration
- Piezo Switch
- Heating battery / dual output
- Color options (please ask)
